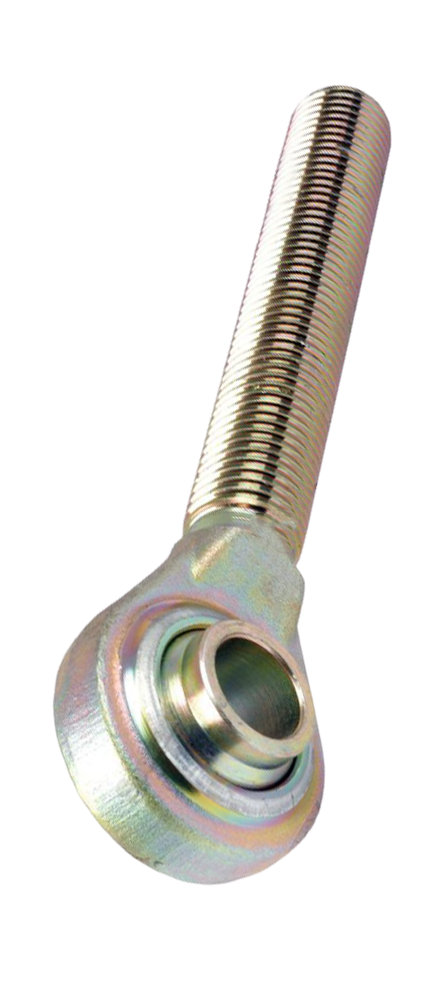

TOP LINK END (METRIC)

CODE	CAT	I.D.	THREAD D	L1	D1	D2	H
STLE 2025 0 R	0	16	M20X2.5R	85	48	40	25.4
STLE 2025 0 L	0	16	M20X2.5L	85	48	40	25.4
STLE2225 1 R	1	19	M22X2.5R	95	58	50	44
STLE2225 0 L	1	19	M22X2.5L	95	58	50	44
STLE2225 1 R (B)	1	19	M22X2.5R	105	58	50	44
STLE2225 1 L (B)	1	19	M22X2.5L	105	58	50	44
STLE2425 1 R	1	19	M24X2.5R	115	58	50	44
STLE2425 1 L	1	19	M24X2.5L	115	58	50	44
STLE2430 1 R	1	19	M24X3 R	115	58	50	44
STLE2430 1 L	1	19	M24X3 L	115	58	50	44
STLE2430 1 R (B)	1	19	M24X3 R	155	62	50	44
STLE2430 1L (B)	1	19	M24X3 L	155	62	50	44
STLE2430 2 R	2	25.4	M24X3 R	165	75	55	51
STLE2430 2 L	2	25.4	M24X3 L	165	75	55	51
STLE2730 1 R	1	19	M27X3 R	150	58	50	44
STLE2730 1 L	1	19	M27X3 L	150	58	50	44
STLE2730 2 R (B)	2	25.4	M27X3 R	165	66	55	51
STLE2730 2 L (B)	2	25.4	M27X3 L	165	66	55	51
STLE 3030 1 R	1	19	M30X3 R	155	58	50	44
STLE3030 1 L	1	19	M30X3 L	155	58	50	44
STLE3035 1 R	1	19	M30X3.5 R	155	58	50	44
STLE3035 1 L	1	19	M30X3.5 L	155	58	50	44
STLE3030 2 R	2	25.4	M30X3 R	165	75	55	51
STLE3030 2 L	2	25.4	M30X3 L	165	75	55	51
STLE3035 2 R	2	25.4	M30X3.5 R	165	75	55	51
STLE3035 2 L	2	25.4	M30X3.5 L	165	75	55	51
STLE3630 2 R	2	25.4	M36X3 R	165	80	55	51
STLE3630 2 L	2	25.4	M36X3 L	165	80	55	51
STLE3630 2 R (B)	2	25.4	M36X3 R	175	80	55	51
STLE3630 2 L (B)	2	25.4	M36X3 L	175	80	55	51
STLE3630 2 R	2	25.4	M36X3 R	200	96	70	51
STLE3630 2 L	2	25.4	M36X3 L	200	96	70	51
STLE3630 3 R	3	32	M36X3 R	200	96	70	51
STLE3630 3 L	3	32	M36X3 L	200	96	70	51
STLE4030 2R	2	25.4	M40X3 R	170	80	60	51
STLE4030 2L	2	25.4	M40X3 L	170	80	60	51
