SNAP PIN SINGLE WIRE (ROUND)

CODE A B C D
SSPR-1/4-1.750 1/4" 2.000" 1.750" 1.625"
SSPR-5/16-1.750 5/16" 2.000" 1.750" 1.750"
SSPR-3/8-1.750 3/8" 2.000" 1.750" 1.500"

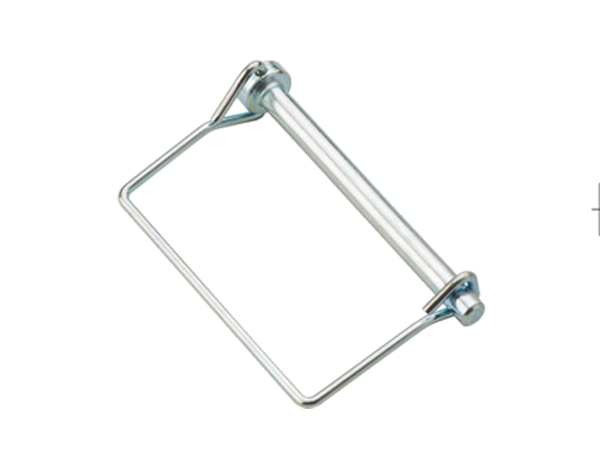

SNAP PIN SINGLE WIRE (SQUARE)

CODE A B C D
SSPS-1/4-2.500 1/4" 2.750" 2.500" 1.625"
SSPS-5/16-2.500 5/16" 2.750" 2.500" 1.750"
SSPS-5/16-3.500 5/16" 3.750" 3.500" 1.750"
SSPS-3/8-2.250 3/8" 2.500" 2.250" 1.500"
SSPS-3/8-2.500 3/8" 2.750" 2.500" 1.500"
SSPS-3/8-3.000 3/8" 3.250" 3.000" 1.500"

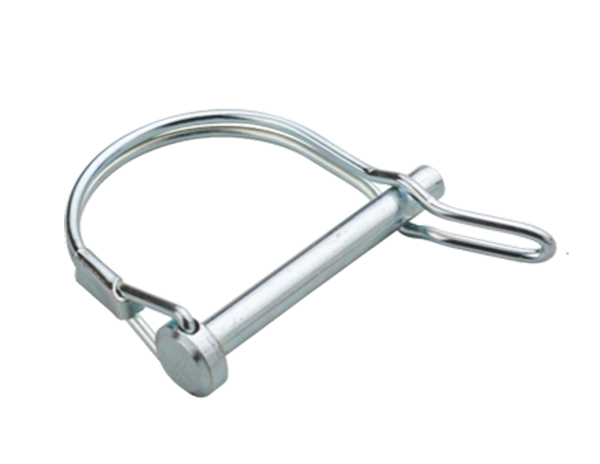

TAB LOCK PIN SINGLE WIRE (ROUND OR SQUARE)

CODE A B C D HANDLE TYPE
STLPR-1/4-1.750D 1/4" 2.000" 1.750" 1.500" ROUND
STLPR-5/16-1.750D 5/16" 2.000" 1.750" 1.500" ROUND
STLPR-3/8-1.750D 3/8" 2.000" 1.750" 1.500" ROUND
STLPS-3/8-2.250D 3/8" 2.750" 2.250" 1.500" SQUARE

TAB LOCK PIN DOUBLE WIRE

CODE A B C D HANDLE TYPE
STLPR-1/4-1.750S 1/4" 2.000" 1.750" 1.500" ROUND
STLPR-5/16-1.750S 5/16" 2.000" 1.750" 1.500" ROUND
STLPR-3/8-1.750S 3/8" 2.000" 1.750" 1.500" ROUND
STLPS-1/4-2.500S 1/4" 2.750" 2.500" 1.500" SQUARE
STLPS-5/16-2.500S 5/16" 2.750" 2.500" 1.500" SQUARE
STLPS-3/8-2.500S 3/8" 2.750" 2.500" 1.500" SQUARE

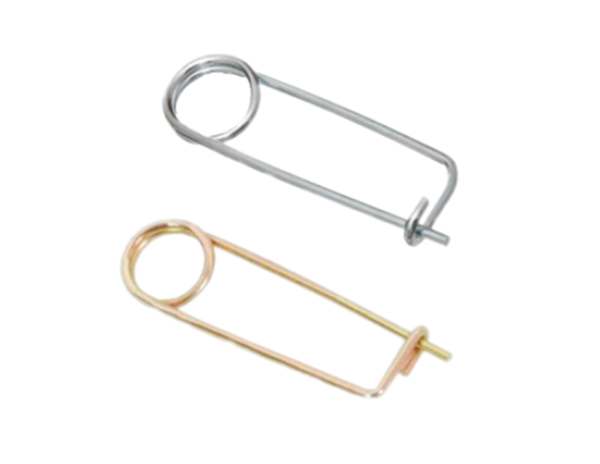

SPRING PIN

CODE A B C D
SSP3 3 60 20 35
SSP4 4 100 33 55
SSP5 5 90 31 42
SSP6 6 100 30 50
