DOUBLE IMPLEMENT MOUNTING PIN

CODE A B C D E F G H I J
SDIMP25210 25 19 40 70 100 80 20 12 12 210
SDIMP25212 25 19 38 96 78 62 22 12 12 212
SDIMP25170 25 19 26 66 78 70 18 6.5 6.5 170
SDIMP28200 28 22 35 75 90 75 20 12 12 200
SDIMP28210 28 22 40 70 100 80 20 12 12 210
SDIMP28230 28 22 40 90 100 80 20 12 12 230
SDIMP28229 28.6 22.2 40 89 100 80 20 12 12 229
SDIMP32250 32 25 40 115 95 81 26 12 12 250
SDIMP36277 36.5 28 36 150 91 81 26 12 12 277
SDIMP36290 36.5 28 45 150 95 80 28 12 12 290

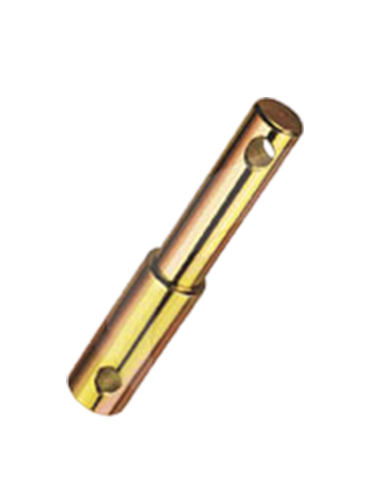

WELD ON END MOUNTING PIN

CODE A B C D E F G
SWOMP 01 28 22 62.5 84.5 70.5 47 12
SWOMP 02 28 22 76.5 104.5 88 60 12
SWOMP 03 28 22 85 105 85 62 12
SWOMP 04 28 22 103 78 60 87.3 12
SWOMP 05 28 22 120 56 39 92 12
SWOMP 06 28.6 22 76 105 87.3 60 12
SWOMP 07 34 28 61 80 62 43.5 12

IMPLEMENT PIN

CODE A B C D E 80F G H
EDMP 19156 19 16 74 82 156 16.5 55 5
EDMP 22168 22 16 80 88 168 12 68 5
EDMP 25166 25 19 85 81 166 18 53 5
EDMP 25160 25 19 80 80 160 18 53 5
EDMP 25180 25 19 90 90 180 18 57 5
EDMP 28180 28 22 90 90 180 18 57 5
EDMP 28175 28 22 90 85 175 16.5 50 6
EDMP 28180 28 22 90 90 180 16.5 61 6
EDMP 32178 32 25 83 95 178 18 62 6.5
EDMP 32172 32 25 80 92 172 22 55 6.5
